Large Head

Aluminium/Steel Open End Rivet With Large Head

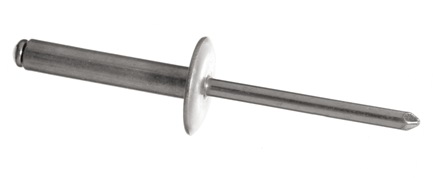

Before Installation

Before Installation

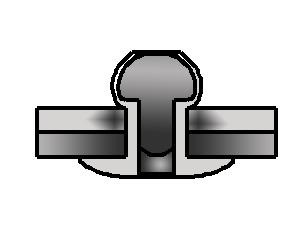

After Installation

After Installation

Info:

Body Material	Aluminium Alloy (2.0-2.5 Mg)
Body Finish	Bright finish surface
Mandrel Material	Low Carbon Steel SAE 1006-1022
Mandrel Finish	Zinc Plated Cr VI free

	Print
	View
	Contact

Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)

MillimetersInches


1/8'' 3.2mm	3.3	A32080L	8.0	2.5 - 4.5	1.20	9.50	1.81	75	100	8,000
		A32100L	10.0	4.5 - 6.5				75	100	8,000
		A32120L	12.0	6.5 - 8.5				75	100	8,000
		A32140L	14.0	8.5 - 10.5				75	100	8,000
		A32160L	16.0	10.5 - 12.5				75	100	7,000
		A40220L	22.0	15.5 - 17.5				100	160	3,000
5/32'' 4.0mm	4.1	A40080L	8.0	1.5 - 3.5	1.50	12.00	2.31	100	160	5,000
		A40100L	10.0	3.5 - 5.5				100	160	5,000
		A40120L	12.0	5.5 - 7.5				100	160	4,000
		A40140L	14.0	7.5 - 9.5				100	160	4,000
		A40160L	16.0	9.5 - 11.5				100	160	4,000
		A40180L	18.0	11.5 - 13.5				100	160	3,000
		A40200L	20.0	13.5 - 15.5				100	160	3,000
3/16'' 4.8mm	4.9	A48100L	10.0	3.0 - 5.0	1.70	14.00	2.61	150	220	3,000
		A48120L	12.0	5.0 - 7.0				150	220	3,000
		A48140L	14.0	7.0 - 9.0				150	220	3,000
		A48160L	16.0	9.0 - 11.0				150	220	3,000
		A48180L	18.0	11.0 - 13.0				150	220	2,500
		A48200L	20.0	13.0 - 15.0				150	220	2,500
		A48220L	22.0	15.0 - 17.0				150	220	2,500
		A48250L	25.0	17.0 - 20.0				150	220	2,000
		A48270L	27.0	20.0 - 22.0				150	220	2,000
		A48300L	30.0	22.0 - 25.0				150	220	2,000
		A48330L	33.0	25.0 - 28.0				150	220	1,500
		A48350L	35.0	28.0 - 30.0				150	220	1,500
		A48370L	37.0	30.0 - 32.0				150	220	1,500
		A48400L	40.0	32.0 - 35.0				150	220	1,500
