Extra-Large Head

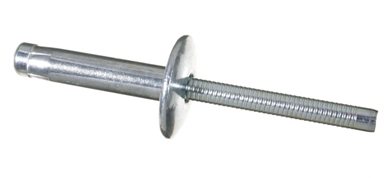

Steel/Steel Orlock Rivet with Extra-Large Head
Before Installation
After Installation
Info:
|
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4'' 6.4mm | 6.7 | L64125X | 12.5 | 4.8 - 6.8 | 3.00 | 19.00 | 4.20 | 1,040 | 660 | 2,000 |
| L64145X | 14.5 | 6.8 - 8.8 | 1,140 | 660 | 2,000 | |||||
| L64165X | 16.5 | 8.8 - 10.8 | 1,140 | 660 | 2,000 | |||||
| L64185X | 18.5 | 10.8 - 12.8 | 1,140 | 660 | 1,500 | |||||
| L64205X | 20.5 | 12.8 - 14.8 | 1,140 | 660 | 1,500 | |||||
| L64225X | 22.5 | 14.8 - 16.8 | 1,140 | 660 | 1,000 | |||||
| L64245X | 24.5 | 16.8 - 18.8 | 1,140 | 660 | 1,000 | |||||
| L64265X | 26.5 | 18.8 - 20.8 | 1,140 | 660 | 1,000 | |||||
| L64285X | 28.5 | 20.8 - 22.8 | 1,140 | 660 | 1,000 | |||||
| L64305X | 30.5 | 22.8 - 24.8 | 1,140 | 660 | 1,000 |
Blue Pneumatic
Fastening Systems
13025 E. Meyer Rd
Whittier, CA 90605
Call Us Toll Free
Tel: 1.888.go blue 5
Fax: 562.903.1662
Our coatings are RoHS and REACH compliant.
