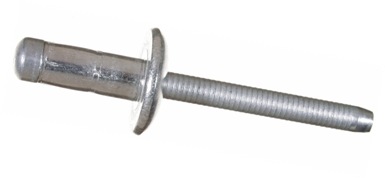

Steel/Steel Orlock Rivet with Large Head

Before Installation
Before Installation
After Installation
After Installation

Info:

Body Material Low Carbon Steel
Body Finish Zinc Plated Cr VI free
Mandrel Material Carbon Steel
Mandrel Finish Zinc Plated Cr VI free

Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)

Nom. Size Drill Dia Body Length Grip Min Grip Max Head Height Head Dia ManDrel Dia Shear Strenght Tensile Strenght Units In Box
3/16'' 4.8mm 5.0 L48090L 9.0 1.5    -    3.5 2.00 14.00 3.02 460 360 3,000
L48115L 11.5 3.5    -    6.0 570 360 3,000
L48140L 14.0 6.0    -    8.5 640 360 3,000
L48165L 16.5 8.5    -    11.0 640 360 2,000
L48190L 19.0 11.0    -    13.5 640 360 2,000
1/4'' 6.4mm 6.7 L64105L 10.5 2.8    -    4.8 3.00 16.30 4.17 940 660 2,000
L64125L 12.5 4.8    -    6.8 1,040 660 2,000
L64145L 14.5 6.8    -    8.8 1,140 660 2,000
L64165L 16.5 8.8    -    10.8 1,140 660 2,000
L64185L 18.5 10.8    -    12.8 1,140 660 1,500
L64205L 20.5 12.8    -    14.8 1,140 660 1,500
L64225L 22.5 14.8    -    16.8 1,140 660 1,000
