Countersunk Head

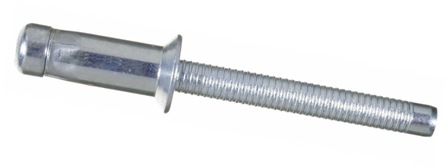

Steel/Steel Orlock Rivet with Countersunk Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/16'' 4.8mm | 5.0 | L48115K | 11.5 | 3.5 - 6.0 | 1.80 | 8.50 | 3.02 | 300 | 340 | 4,000 |
| L48140K | 14.0 | 6.0 - 8.5 | 400 | 340 | 3,000 | |||||
| L48165K | 16.5 | 8.5 - 11.0 | 500 | 340 | 3,000 | |||||
| L48190K | 19.0 | 11.0 - 13.5 | 600 | 340 | 3,000 | |||||
| 1/4'' 6.4mm | 6.7 | L64115K | 11.5 | 3.8 - 5.8 | 2.00 | 10.00 | 4.20 | 550 | 560 | 2,000 |
| L64125K | 12.5 | 4.8 - 6.8 | 650 | 560 | 2,000 | |||||
| L64135K | 13.5 | 5.8 - 7.8 | 750 | 560 | 2,000 | |||||
| L64155K | 15.5 | 7.8 - 9.8 | 950 | 560 | 2,000 | |||||
| L64175K | 17.5 | 9.8 - 11.8 | 1,050 | 560 | 2,000 | |||||
| L64195K | 19.5 | 11.8 - 13.8 | 1,050 | 560 | 2,000 | |||||
| L64215K | 21.5 | 13.8 - 15.8 | 1,050 | 560 | 2,000 | |||||
| L64235K | 23.5 | 15.8 - 17.8 | 1,050 | 560 | 2,000 |
