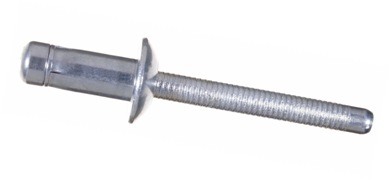

Steel/Steel Orlock Rivet with Protruding Head

Before Installation
Before Installation

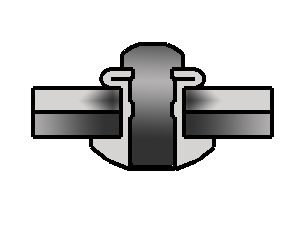

After Installation
After Installation

Info:

Body Material Low Carbon Steel
Body Finish Zinc Plated Cr VI free
Mandrel Material Carbon Steel
Mandrel Finish Zinc Plated Cr VI free

Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)

Nom. Size Drill Dia Body Length Grip Min Grip Max Head Height Head Dia ManDrel Dia Shear Strenght Tensile Strenght Units In Box
3/16'' 4.8mm 5.0 L48090P 9.0 1.5    -    3.5 2.20 9.80 3.02 460 360 5,000
L48115P 11.5 3.5    -    6.0 610 360 4,000
L48140P 14.0 6.0    -    8.5 640 360 3,000
L48165P 16.5 8.5    -    11.0 640 360 3,000
L48190P 19.0 11.0    -    13.5 640 360 3,000
1/4'' 6.4mm 6.7 L64090P 9.0 1.5    -    3.5 3.00 13.00 4.17 700 660 2,500
L64105P 10.5 2.8    -    4.8 940 660 2,000
L64111P 11.1 3.4    -    5.4 940 660 2,000
L64125P 12.5 4.8    -    6.8 1,040 660 2,000
L64145P 14.5 6.8    -    8.8 1,140 660 2,000
L64165P 16.5 8.8    -    10.8 1,140 660 2,000
L64185P 18.5 10.8    -    12.8 1,140 660 2,000
L64205P 20.5 12.8    -    14.8 1,140 660 2,000
L64225P 22.5 14.8    -    16.8 1,140 660 1,500
L64245P 24.5 16.8    -    18.8 1,140 660 1,000
L64265P 26.5 18.8    -    20.8 1,140 660 1,000
L64285P 28.5 20.8    -    22.8 1,140 660 1,000
L64305P 30.5 22.8    -    24.8 1,140 660 1,000
L64325P 32.5 24.8    -    26.8 1,140 660 1,000
L64355P 35.5 25.8    -    28.8 1,140 660 1,000
L64375P 37.5 27.8    -    30.8 1,140 660 1,000
L64395P 39.5 29.8    -    32.8 1,140 660 1,000
5/16'' 7.8mm 8.2 L78135P 13.5 4.0    -    7.0 3.70 16.00 5.12 1,410 930 1,000
L78165P 16.5 7.0    -    10.0 1,600 930 1,000
L78195P 19.5 10.0    -    13.0 1,600 930 1,000
L78225P 22.5 13.0    -    16.0 1,600 930 1,000
L78255P 25.5 16.0    -    19.0 1,600 930 1,000
L78285P 28.5 19.0    -    22.0 1,600 930 500
L78315P 31.5 22.0    -    25.0 1,600 930 500
