Extra-Large Head

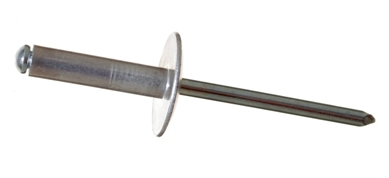

Aluminium/Steel Open End Rivet With Extra-Large Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/16'' 4.8mm | 4.9 | A48100X | 10.0 | 3.0 - 5.0 | 1.80 | 15.80 | 2.61 | 150 | 220 | 3,000 |
| A48120X | 12.0 | 5.0 - 7.0 | 150 | 220 | 3,000 | |||||
| A48140X | 14.0 | 7.0 - 9.0 | 150 | 220 | 3,000 | |||||
| A48160X | 16.0 | 9.0 - 11.0 | 150 | 220 | 2,500 | |||||
| A48180X | 18.0 | 11.0 - 13.0 | 150 | 220 | 2,000 | |||||
| A48200X | 20.0 | 13.0 - 15.0 | 150 | 220 | 2,000 | |||||
| A48220X | 22.0 | 15.0 - 17.0 | 150 | 220 | 2,000 | |||||
| A48240X | 24.0 | 16.0 - 19.0 | 150 | 220 | 2,000 | |||||
| A48250X | 25.0 | 17.0 - 20.0 | 150 | 220 | 2,000 | |||||
| A48270X | 27.0 | 20.0 - 22.0 | 150 | 220 | 2,000 | |||||
| A48300X | 30.0 | 20.0 - 25.0 | 150 | 220 | 2,000 | |||||
| A48330X | 33.0 | 25.0 - 28.0 | 150 | 220 | 1,500 | |||||
| A48350X | 35.0 | 28.0 - 30.0 | 150 | 220 | 1,500 | |||||
| A48370X | 37.0 | 30.0 - 32.0 | 150 | 220 | 1,500 | |||||
| A48400X | 40.0 | 32.0 - 35.0 | 150 | 220 | 1,500 |
