Countersunk Head
Aluminium/Steel Open End Rivet With Countersunk Head
Before Installation

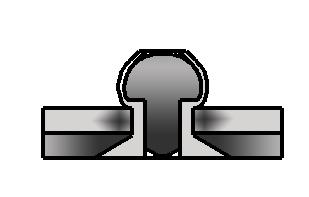

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8'' 3.2mm | 3.3 | A32080K | 8.0 | 2.5 - 4.5 | 0.90 | 5.70 | 1.81 | 75 | 100 | 10,000 |
| A32100K | 10.0 | 4.5 - 6.5 | 75 | 100 | 10,000 | |||||
| A32120K | 12.0 | 6.5 - 8.5 | 75 | 100 | 10,000 | |||||
| 5/32'' 4.0mm | 4.1 | A40080K | 8.0 | 1.5 - 3.5 | 1.10 | 7.20 | 2.31 | 100 | 160 | 7,000 |
| A40100K | 10.0 | 3.5 - 5.5 | 100 | 160 | 7,000 | |||||
| A40120K | 12.0 | 5.5 - 7.5 | 100 | 160 | 6,000 | |||||
| A40140K | 14.0 | 7.5 - 9.5 | 100 | 160 | 6,000 | |||||
| A40160K | 16.0 | 9.5 - 11.5 | 100 | 160 | 4,000 | |||||
| 3/16'' 4.8mm | 4.9 | A48120K | 12.0 | 5.0 - 7.0 | 1.30 | 8.70 | 2.61 | 150 | 220 | 5,000 |
| A48140K | 14.0 | 7.0 - 9.0 | 150 | 220 | 5,000 | |||||
| A48160K | 16.0 | 9.0 - 11.0 | 150 | 220 | 4,000 | |||||
| A48180K | 18.0 | 11.0 - 13.0 | 150 | 220 | 4,000 | |||||
| A48250K | 25.0 | 17.0 - 20.0 | 150 | 220 | 3,000 | |||||
| A48300K | 30.0 | 20.0 - 25.0 | 150 | 220 | 2,500 |
