Dome Head

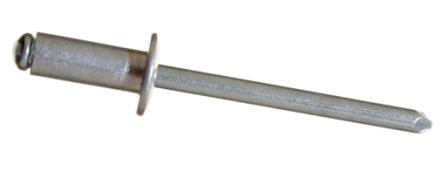

Aluminium/Steel Open End Rivet with Dome Head
Before Installation

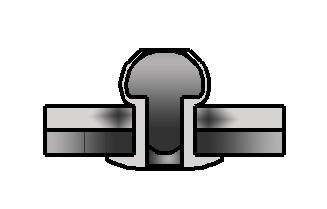

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.114'' 2.9mm | 3.1 | A29045D | 4.5 | 0.3 - 1.5 | 0.90 | 6.30 | 1.81 | 70 | 85 | 10,000 |
| A29060D | 6.0 | 0.5 - 3.0 | 70 | 85 | 10,000 | |||||
| A29080D | 8.0 | 3.0 - 5.0 | 70 | 85 | 10,000 | |||||
| A29100D | 10.0 | 5.0 - 7.0 | 70 | 85 | 10,000 | |||||
| A29120D | 12.0 | 7.0 - 9.0 | 70 | 85 | 10,000 | |||||
| A29140D | 14.0 | 9.0 - 11.0 | 70 | 85 | 9,000 | |||||
| A29160D | 16.0 | 11.0 - 13.0 | 70 | 85 | 9,000 | |||||
| 1/8'' 3.2mm | 3.3 | A32060D | 6.0 | 0.5 - 2.5 | 0.90 | 6.30 | 1.81 | 75 | 100 | 10,000 |
| A32080D | 8.0 | 2.5 - 4.5 | 75 | 100 | 10,000 | |||||
| A32100D | 10.0 | 4.5 - 6.5 | 75 | 100 | 10,000 | |||||
| A32120D | 12.0 | 6.5 - 8.5 | 75 | 100 | 10,000 | |||||
| A32140D | 14.0 | 8.5 - 10.5 | 75 | 100 | 8,000 | |||||
| A32160D | 16.0 | 10.5 - 12.5 | 75 | 100 | 8,000 | |||||
| A32180D | 18.0 | 12.5 - 14.5 | 75 | 100 | 6,000 | |||||
| A32200D | 20.0 | 14.5 - 16.5 | 75 | 100 | 6,000 | |||||
| A32220D | 22.0 | 16.5 - 18.5 | 75 | 100 | 6,000 | |||||
| 5/32'' 4.0mm | 4.1 | A40060D | 6.0 | 1.0 - 1.5 | 1.15 | 7.80 | 2.31 | 100 | 160 | 8,000 |
| A40080D | 8.0 | 1.5 - 3.5 | 100 | 160 | 7,000 | |||||
| A40100D | 10.0 | 3.5 - 5.5 | 100 | 160 | 7,000 | |||||
| A40120D | 12.0 | 5.5 - 7.5 | 100 | 160 | 6,000 | |||||
| A40140D | 14.0 | 7.5 - 9.5 | 100 | 160 | 6,000 | |||||
| A40160D | 16.0 | 9.5 - 11.5 | 100 | 160 | 4,000 | |||||
| A40180D | 18.0 | 11.5 - 13.5 | 100 | 160 | 4,000 | |||||
| A40200D | 20.0 | 13.5 - 15.5 | 100 | 160 | 5,000 | |||||
| A40220D | 22.0 | 15.5 - 17.5 | 100 | 160 | 4,000 | |||||
| A40250D | 25.0 | 17.5 - 20.5 | 100 | 160 | 4,000 | |||||
| A40300D | 30.0 | 22.5 - 25.5 | 100 | 160 | 3,000 | |||||
| 3/16'' 4.8mm | 4.9 | A48080D | 8.0 | 1.0 - 3.0 | 1.30 | 9.30 | 2.61 | 150 | 220 | 5,000 |
| A48100D | 10.0 | 3.0 - 5.0 | 150 | 220 | 5,000 | |||||
| A48120D | 12.0 | 5.0 - 7.0 | 150 | 220 | 5,000 | |||||
| A48140D | 14.0 | 7.0 - 9.0 | 150 | 220 | 4,000 | |||||
| A48160D | 16.0 | 9.0 - 11.0 | 150 | 220 | 4,000 | |||||
| A48180D | 18.0 | 11.0 - 13.0 | 150 | 220 | 4,000 | |||||
| A48200D | 20.0 | 13.0 - 15.0 | 150 | 220 | 3,000 | |||||
| A48220D | 22.0 | 15.0 - 17.0 | 150 | 220 | 3,000 | |||||
| A48250D | 25.0 | 17.0 - 20.0 | 150 | 220 | 3,000 | |||||
| A48300D | 30.0 | 20.0 - 25.0 | 150 | 220 | 2,500 | |||||
| A48330D | 33.0 | 25.0 - 28.0 | 150 | 220 | 2,000 | |||||
| A48350D | 35.0 | 28.0 - 30.0 | 150 | 220 | 2,000 | |||||
| A48400D | 40.0 | 30.0 - 35.0 | 150 | 220 | 2,000 |
