Countersunk Head

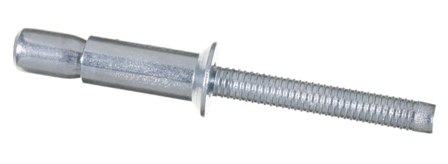

Steel/Steel Ornilock Rivet with Countersunk Head
Before Installation

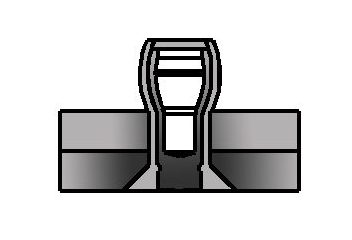

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/16'' 4.8mm | 5.0 | M48123K | 12.3 | 3.2 - 8.4 | 1.80 | 8.60 | 3.00 | 630 | 545 | 3,000 |
| M48165K | 16.5 | 7.8 - 12.7 | 630 | 545 | 2,000 | |||||
| 1/4'' 6.5mm | 6.8 | M65167K | 16.7 | 4.1 - 12.1 | 2.00 | 10.00 | 4.00 | 1,250 | 1000 | 2,000 |
| M65230K | 23.0 | 10.6 - 18.4 | 1,250 | 1000 | 1,500 |
Blue Pneumatic
Fastening Systems
13025 E. Meyer Rd
Whittier, CA 90605
Call Us Toll Free
Tel: 1.888.go blue 5
Fax: 562.903.1662
Our coatings are RoHS and REACH compliant.
