Protruding Head

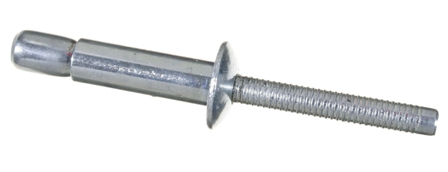

Steel/Steel Ornilock Rivet with Protruding Head
Before Installation

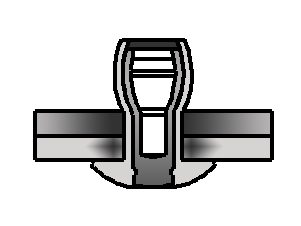

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/16'' 4.8mm | 5.0 | M48105P | 10.5 | 1.6 - 6.9 | 2.10 | 9.80 | 3.00 | 630 | 545 | 4,000 |
| M48145P | 14.5 | 5.4 - 11.1 | 630 | 545 | 3,000 | |||||
| MS48145P | 14.5 | 1.6 - 11.1 | 630 | 545 | 3,000 | |||||
| 1/4'' 6.5mm | 6.8 | MS65205P | 20.5 | 2.0 - 15.9 | 2.80 | 13.00 | 4.00 | 1,250 | 1000 | 1,500 |
| MS65270P | 27.0 | 8.9 - 22.5 | 1,250 | 1000 | 1,000 | |||||
| M65142P | 14.2 | 2.0 - 9.5 | 1,250 | 1000 | 2,000 | |||||
| M65205P | 20.5 | 8.9 - 15.9 | 1,250 | 1000 | 1,500 | |||||
| M65270P | 27.0 | 15.9 - 22.5 | 1,250 | 1000 | 1,000 |
