Extra-Large Head

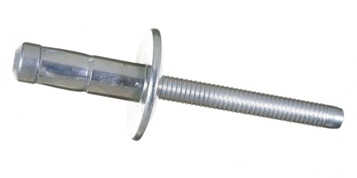

Super-Orlock Rivet with Extra-Large Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4'' 6.5mm | 6.8 | LS65145X | 14.5 | 5.0 - 8.5 | 3.00 | 19.00 | 4.17 | 1,400 | 810 | 2,000 |
| LS65165X | 16.5 | 7.0 - 10.5 | 1,450 | 810 | 1,000 | |||||
| LS65185X | 18.5 | 9.0 - 12.5 | 1,570 | 810 | 1,000 | |||||
| LS65205X | 20.5 | 11.0 - 14.5 | 1,570 | 810 | 1,000 | |||||
| LS65225X | 22.5 | 13.0 - 16.5 | 1,570 | 810 | 1,000 |
