Protruding Head

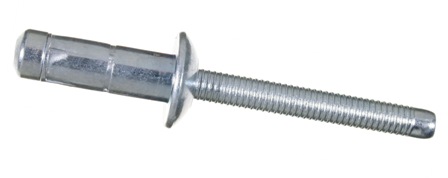

Super-Orlock Rivet with Protruding Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4'' 6.5mm | 6.8 | LS65105P | 10.5 | 2.0 - 4.5 | 3.00 | 13.00 | 4.17 | 1,100 | 810 | 2,000 |
| LS65125P | 12.5 | 3.0 - 6.5 | 1,250 | 810 | 2,000 | |||||
| LS65145P | 14.5 | 5.0 - 8.5 | 1,400 | 810 | 2,000 | |||||
| LS65165P | 16.5 | 7.0 - 10.5 | 1,450 | 810 | 2,000 | |||||
| LS65185P | 18.5 | 9.0 - 12.5 | 1,570 | 810 | 2,000 | |||||
| LS65205P | 20.5 | 11.0 - 14.5 | 1,570 | 810 | 2,000 | |||||
| LS65225P | 22.5 | 13.0 - 16.5 | 1,570 | 810 | 1,000 |
Blue Pneumatic
Fastening Systems
13025 E. Meyer Rd
Whittier, CA 90605
Call Us Toll Free
Tel: 1.888.go blue 5
Fax: 562.903.1662
Our coatings are RoHS and REACH compliant.
