Protruding Head

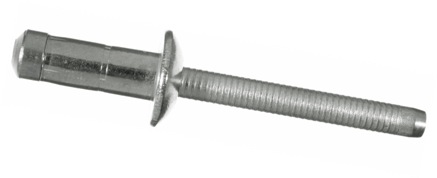

Stainless Steel/Stainless Steel Orlock Rivet with Protruding Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/16'' 4.8mm | 5.0 | LN48090P | 9.0 | 1.5 - 3.5 | 2.20 | 9.80 | 3.03 | 620 | 510 | 5,000 |
| LN48115P | 11.5 | 3.5 - 6.0 | 700 | 510 | 4,000 | |||||
| LN48140P | 14.0 | 6.0 - 8.5 | 700 | 510 | 3,000 | |||||
| LN48165P | 16.5 | 8.5 - 11.0 | 700 | 510 | 3,000 | |||||
| LN48190P | 19.0 | 11.0 - 13.0 | 700 | 510 | 3,000 | |||||
| 1/4'' 6.4mm | 6.6 | LN64105P | 10.5 | 2.0 - 4.5 | 3.00 | 13.00 | 4.17 | 1,440 | 850 | 2,000 |
| LN64125P | 12.5 | 4.0 - 6.5 | 1,480 | 850 | 2,000 | |||||
| LN64145P | 14.5 | 5.0 - 8.5 | 1,480 | 850 | 2,000 | |||||
| LN64165P | 16.5 | 7.0 - 10.5 | 1,480 | 850 | 2,000 | |||||
| LN64185P | 18.5 | 9.0 - 12.5 | 1,480 | 850 | 2,000 | |||||
| LN64205P | 20.5 | 11.0 - 14.5 | 1,480 | 850 | 2,000 | |||||
| LN64225P | 22.5 | 13.0 - 16.0 | 1,480 | 850 | 2,000 | |||||
| 5/16'' 7.8mm | 8.1 | LN78135P | 13.5 | 4.0 - 7.0 | 3.80 | 16.00 | 5.12 | 2,050 | 1300 | 1,000 |
| LN78165P | 16.5 | 7.0 - 10.0 | 2,200 | 1300 | 1,000 | |||||
| LN78195P | 19.5 | 10.0 - 13.0 | 2,200 | 1300 | 1,000 | |||||
| LN78225P | 22.5 | 13.0 - 16.0 | 2,200 | 1300 | 1,000 |
