Large Head

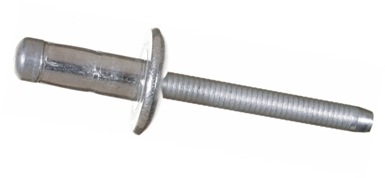

Stainless Steel/Stainless Steel Orlock Rivet with Large Head

Before Installation
Before Installation
After Installation
After Installation

Info:

Body Material Austenitic Stainless Steel AISI 304 Cu
Body Finish Natural
Mandrel Material Austenitic Stainless Steel AISI 304 Cu
Mandrel Finish Natural

Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)

Nom. Size Drill Dia Body Length Grip Min Grip Max Head Height Head Dia ManDrel Dia Shear Strenght Tensile Strenght Units In Box
1/4'' 6.4mm 6.6 LN64105L 10.5 2.0    -    4.5 3.10 16.30 4.17 1,440 850 2,000
LN64125L 12.5 4.0    -    6.5 1,480 850 2,000
LN64145L 14.5 5.0    -    8.5 1,480 850 2,000
LN64165L 16.5 7.0    -    10.5 1,480 850 2,000
LN64185L 18.5 9.0    -    12.5 1,480 850 1,000
