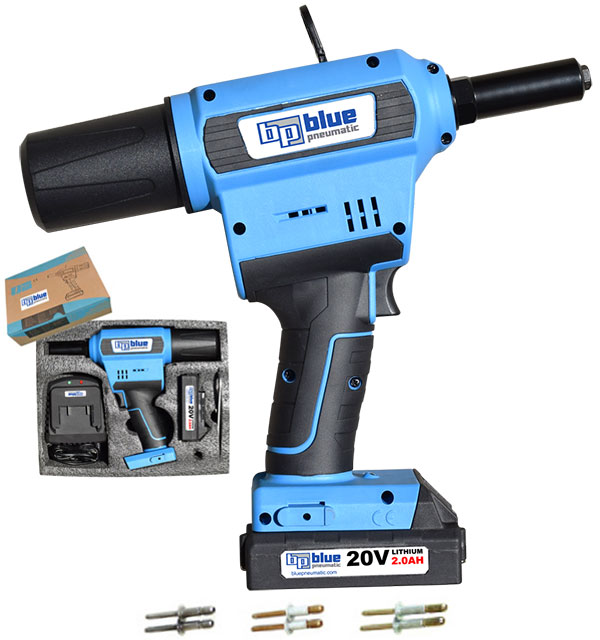

BP-20CR Cordless Riveter

We’ve done it again. More Power, Less Weight, More Productivity! No Air hoses or compressors to hassle with.

The Blue Pneumatic BP-20CR 1/4” Blind Rivet Tool is an ultra-fast cordless rivet tool. It eliminates the need for air hoses and compressors and is built to last. The brushless motor makes this tool very durable, lasting many times longer than other rivet tools. With an industry leading 27mm (1 1/16 in) stroke, it pulls rivets in just one stroke. This tool is ideal for production environments as it has a sturdy outer composite body and requires just about no maintenance. BP-20CR’s Brushless Motor delivers 4,496 lbs. (20kN) of pulling force for high-strength Structural blind rivets in all materials. This rivet tool pulls rivets ranging from 1/8 up to ¼” in all /materials.

  • Eliminates compressors and air hoses providing lower cost of ownership, greater productivity, more portability, and more safety.
  • Installs 1/8 in. (3.2 mm). 5/32 in. (4 mm), 3/16 in. (4.8 mm), 1/4 in. (6.4 mm) in aluminum, steel, and stainless steel rivets.
  • Battery charges in 60 minutes.
  • Brushless Motor delivers 4,496 lbs. (20kN) of pulling force for high strength (Structural) blind rivets in all materials.
  • 1 1/16 in.(27mm) stroke to set rivets in one stoke.
  • Weighs only 4.16 lbs. including the 20V battery.
  • Led work light to illuminate work area.
  • Kit includes: 1) BP-20CR 1/4 in. Rivet Tool, 1) 100-240V charger, 1) 20V battery,4) Nozzles (Nose tips), 1) Wrench set,1) Mandrel collector bottle.

Download Parts Breakdown pdf
Download Operation Manual pdf
