Dome Head
Stelock Rivet With Dome Head

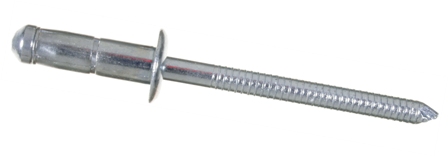

Before Installation

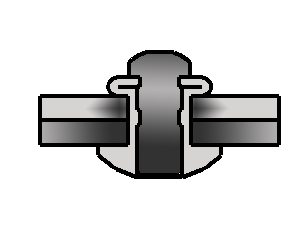

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 5/32'' 4.0mm | 4.1 | SL40077D | 7.7 | 1.0 - 3.0 | 1.30 | 7.70 | 2.57 | 250 | 285 | 5,000 |
| SL40097D | 9.7 | 3.0 - 5.0 | 360 | 285 | 5,000 | |||||
| SL40127D | 12.7 | 5.0 - 7.0 | 420 | 285 | 5,000 | |||||
| 3/16'' 4.8mm | 5.0 | SL48088D | 8.8 | 1.5 - 3.5 | 1.30 | 9.30 | 3.05 | 370 | 387 | 5,000 |
| SL48113D | 11.3 | 3.5 - 6.0 | 430 | 387 | 5,000 | |||||
| SL48143D | 14.3 | 6.0 - 8.5 | 570 | 387 | 4,000 | |||||
| 0.236'' 6.0mm | 6.2 | SL60100D | 10.0 | 1.5 - 4.0 | 1.80 | 12.00 | 3.98 | 490 | 550 | 3,000 |
| SL60130D | 13.0 | 3.0 - 6.0 | 590 | 550 | 2,500 | |||||
| SL60160D | 16.0 | 6.0 - 9.0 | 860 | 550 | 2,500 | |||||
| SL60190D | 19.0 | 9.0 - 12.0 | 960 | 550 | 2,000 |
