Protruding Head
Steel/Steel Or-Bolt Rivet with Protruding Head

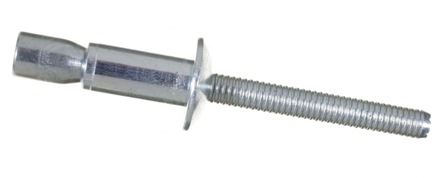

Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4'' 6.5mm | 6.8 | J65140P | 14.0 | 2.0 - 9.5 | 2.60 | 13.00 | 4.00 | 1,250 | 1000 | 2,000 |
| J65190P | 19.0 | 8.9 - 15.9 | 1,250 | 1000 | 1,500 | |||||
| JS65190P | 19.0 | 2.0 - 15.9 | 1,250 | 1000 | 1,500 |
Blue Pneumatic
Fastening Systems
13025 E. Meyer Rd
Whittier, CA 90605
Call Us Toll Free
Tel: 1.888.go blue 5
Fax: 562.903.1662
Our coatings are RoHS and REACH compliant.
