Protruding Head
Aluminium/Aluminium Or-Bolt Rivet with Protruding Head

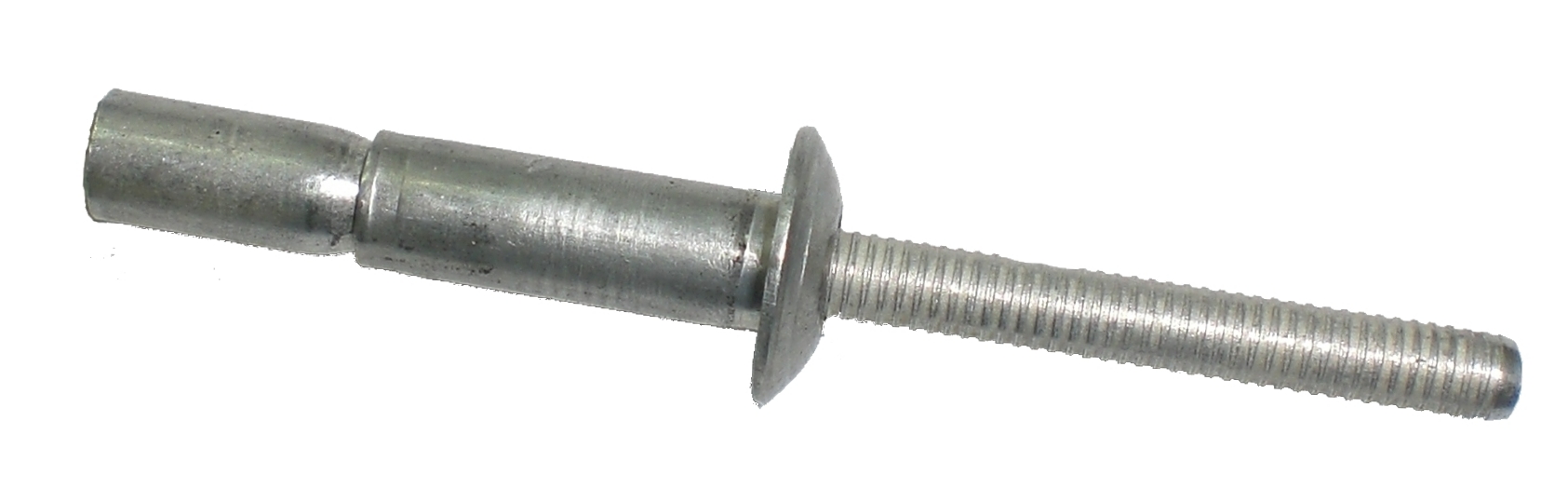

Before Installation

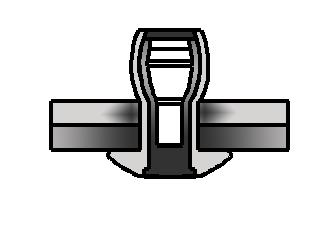

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4'' 6.5mm | 6.8 | JH65140P | 14.0 | 2.0 - 9.5 | 2.60 | 13.00 | 4.00 | 610 | 430 | 2,000 |
| JH65190P | 19.0 | 8.9 - 15.9 | 610 | 430 | 1,500 | |||||
| JHS65190P | 19.0 | 2.0 - 15.9 | 610 | 430 | 1,500 |
