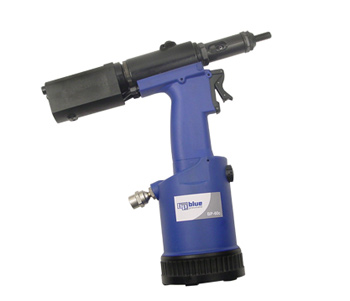

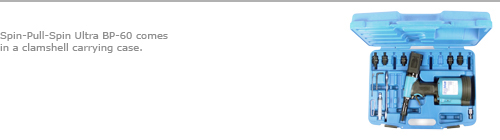

Spin-Pull-Spin Ultra™ BP-60



This rivet nut tool features a SPIN-PULL-SPIN setting sequence. In one touch the fastener quickly spins on, pulls the fastener, and with the release button, spins out of the fastener. Setting cycle is about 2 seconds. This means less thread deformation. The BP-60 Rivet Nut tool has a fully adjustable stroke for accurate insert placements, which requires less operator skill. Stroke adjustment is quick and easy, and is done from exterior of the riv nut tool. Mandrels are included with tool. Comes complete with sizes 8-32 through 1/2-13 or M4 through M12. "More Power" means this tool uses its huge 6800 lbs. of pulling force to set up to 1/2 (M12) steel rivet nuts with ease. Recommended operating air pressure is 80-100psi. Weight 6 lbs.
Video View a video demo for this tool
PDF Download a breakdown of this tool in PDF format

The BP-60 will install essentially all of the common American and European Rivet Nuts. The leading rivet nut manufacturers strongly recommend High strength "Spin Pull" installation action for thick wall rivet nuts.

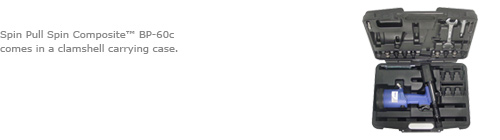

The Spin Pull Spin Composite rivet nut tool is a lighter weight option to the BP-60. This rivet nut tool also has the spin-pull-spin setting sequence. This BP-60c can reduce user fatigue in applications where counter-weighting in not available. The BP-60c riv nut tool comes complete with sizes 8-32 through -13 or M4 through M12. The BP-60c employs 4600 lbs. of pulling force and can set up to steel rivet nuts, or nutserts. Recommended operating air pressure is 60-110 psi. Weight 4.9 lbs.

Video View a video demo for this tool
PDF Download a breakdown of this tool in PDF format
| back to top






                                                                       Power-Spin™ BP-350Qc    New!


Now with new swiveling air inlet and ergonomic composite handle. Technology and production techniques make this tool possible. This rivet nut tool is designed to fill the gap between the hand tool and the "big" high end production spin-pull tools. It offers a solution that is powerful, fast and affordable. It is durable and reliable, perfect for everyday production applications. The spin-spin action places Rivet Nuts ranging from 1/4-20, 5/16-18, 3/8-16 and M6, M8, and M10 in steel and aluminum. It has a quick change nose assembly that easily snaps on and off to change to desired nutsert sizes. It has a teasing, reversible throttle for precise control. Operates at 360 rpm. Recommended operating air pressure is 85-110 psi. Weight 2.8 lbs.
Video View a video demo for this tool
PDF Download a full breakdown of this tool in PDF format
PDF Download complete tool and nose piece selection chart PDF
PDF Download nose piece breakdown with care instructions PDF

Quick change nose assembly. Available in 6-32 through 3/8-16.

* Spin-Spin tools use replaceable socket head cap screw.
* 3/8 air hose recommended for optimal performance.






                                                                       Accu-Spin™ BP-600Qc     New!


Now with new swiveling air inlet and ergonomic composite handle. BP-600Qc Rivet Nut tool offers the same features as the BP-350Qc. This model operates at 800 rpm for quick installations of smaller rivet nuts. Places 8-32, 10-24, 1/4-20 and M4, M5, and M6 rivet nuts. Recommended operating air pressure is 85-110 psi. Weight 2.8 lbs.
Video View a video demo for this tool
PDF Download a full breakdown of this tool in PDF format
PDF Download complete tool and nose piece selection chart PDF
PDF Download nose piece breakdown with care instructions PDF

Quick change nose assembly. Available in 6-32 through 3/8-16.

* Spin-Spin tools use replaceable socket head cap screw.
* 3/8 air hose recommended for optimal performance

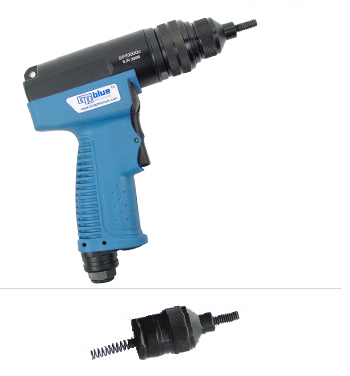

                                                                       Quick-Spin™ BP-2000Qc     New!


Now with new swiveling air inlet and ergonomic composite handle. BP-2000Qc Rivet Nut tool offers the same features as the BP-350Qc. This model operates at 1600 rpm for quick installations of smaller rivet nuts. Places 6-32, 8-32, 10-24 and M3, M4, as well as Jacknuts. Recommended operating air pressure is 85-110 psi. Weight 2.8 lbs.
Video View a video demo for this tool
PDF Download a full breakdown of this tool in PDF format
PDF Download complete tool and nose piece selection chart PDF
PDF Download nose piece breakdown with care instructions PDF

Quick change nose assembly. Available in 6-32 through 3/8-16.

* Spin-Spin tools use replaceable socket head cap screw.
* 3/8 air hose recommended for optimal performance






                                                                      Big Spin™ BP-200Bc     New!

Now with new swiveling air inlet and ergonomic composite handle. BP-200Bc Rivet Nut tool offers the same features as the BP-350Qc. This model operates at 200 rpm for installations of the large rivet nuts. Big Spin uses the included twist lock nose assembly. Places 1/2-13 and M12. Recommended operating air pressure is 85-110 psi. Weight 2.8 lbs.
Video View a video demo for this tool
PDF Download a full breakdown of this tool in PDF format
PDF Download complete tool and nose piece selection chart PDF
PDF Download nose piece breakdown with care instructions PDF

* Spin-Spin tools use replaceable socket head cap screw.
* 3/8 air hose recommended for optimal performance

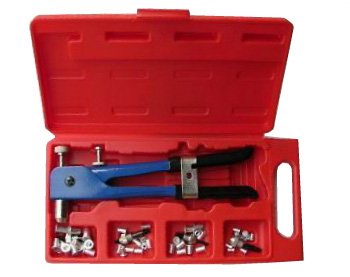

                                                                      R and D Kit BP-738K

BP-738 Hand Tool. Mandrels including 6-32, 8-32, 10-24, and 1/4-20 or M3, M4, M5, and M6.

Also includes 40 total pcs of assorted rivet nuts that match included mandrels.

Comes in molded plastic case (Private labeling available).

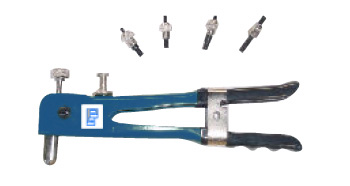

                                                                      Rivet Nut Hand Tool w/ Mandrels BP-738M

Hand tool with mandrels.
Includes Mandrel sizes 6-32,8-32,10-24 and 1/4-20.





                                                                      Rivet Nut Hand Tool BP-738

Hand tool.
