Extra-Large
Steel-Fix Rivet with Extra-Large Head

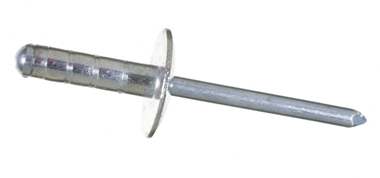

Before Installation

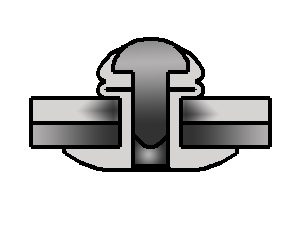

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/16'' 4.8mm | 4.9 | SF48090X | 9.0 | 1.0 - 4.0 | 1.90 | 15.85 | 2.90 | 450 | 390 | 3,000 |
| SF48110X | 11.0 | 1.0 - 6.0 | 450 | 390 | 3,000 | |||||
| SF48140X | 14.0 | 1.0 - 9.0 | 450 | 390 | 3,000 | |||||
| SF48170X | 17.0 | 3.0 - 12.0 | 450 | 390 | 2,500 |
Blue Pneumatic
Fastening Systems
13025 E. Meyer Rd
Whittier, CA 90605
Call Us Toll Free
Tel: 1.888.go blue 5
Fax: 562.903.1662
Our coatings are RoHS and REACH compliant.
