Dome Head

Peel Rivet With Dome Head

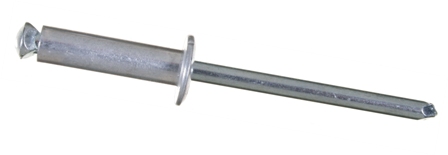

Before Installation
Before Installation
After Installation
After Installation

Info:

Body Material Aluminium Alloy (3.5/5.0 Mg)
Body Finish Bright finish surface
Mandrel Material Low Carbon Steel SAE 1006-1022
Mandrel Finish Zinc Plated Cr VI free

Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)

Nom. Size Drill Dia Body Length Grip Min Grip Max Head Height Head Dia ManDrel Dia Shear Strenght Tensile Strenght Units In Box
5/32'' 4.0mm 4.3 P40100D 10.0 2.0    -    4.0 1.15 7.80 2.31 150 185 7,000
P40120D 12.0 3.0    -    6.0 150 185 6,000
P40140D 14.0 4.0    -    8.0 150 185 6,000
P40160D 16.0 6.0    -    10.0 150 185 5,000
3/16'' 4.8mm 5.1 P48100D 10.0 1.0    -    3.0 1.30 9.30 2.61 200 200 5,000
P48120D 12.0 2.0    -    5.0 200 200 4,000
P48140D 14.0 3.0    -    7.0 200 200 4,000
P48160D 16.0 5.0    -    9.0 200 200 4,000
P48180D 18.0 7.0    -    11.0 200 200 4,000
P48200D 20.0 9.0    -    13.0 200 200 3,000
P48250D 25.0 12.0    -    18.0 200 200 3,000
P48300D 30.0 16.0    -    23.0 200 200 3,000
P48350D 35.0 21.0    -    28.0 200 200 2,000
P48400D 40.0 26.0    -    33.0 200 200 2,000
