Large Head

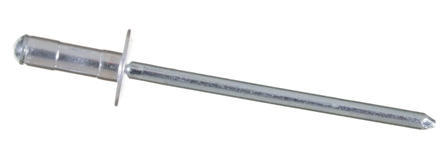

Aluminium/Steel U-Fix Rivet with Large Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8'' 3.2mm | 3.3 | U32080L | 8.0 | 0.8 - 4.8 | 1.00 | 8.25 | 1.81 | 75 | 104 | 8,000 |
| U32095L | 9.5 | 1.2 - 6.4 | 75 | 104 | 8,000 | |||||
| U32111L | 11.1 | 4.0 - 7.9 | 75 | 104 | 7,000 | |||||
| U32127L | 12.7 | 5.5 - 9.5 | 75 | 104 | 7,000 | |||||
| 5/32'' 4.0mm | 4.1 | U40095L | 9.5 | 1.2 - 6.4 | 1.30 | 9.50 | 2.25 | 116 | 170 | 5,000 |
| U40111L | 11.1 | 3.2 - 7.9 | 116 | 170 | 5,000 | |||||
| U40127L | 12.7 | 4.0 - 9.5 | 116 | 170 | 4,000 | |||||
| U40151L | 15.1 | 6.4 - 11.1 | 116 | 170 | 4,000 | |||||
| U40169L | 16.9 | 6.4 - 12.7 | 116 | 170 | 4,000 |
