Countersunk Head

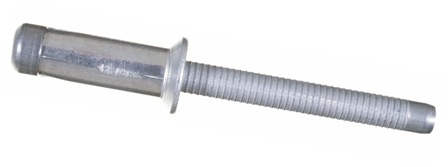

Aluminium/Aluminium Orlock Rivet with Countersunk Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4'' 6.4mm | 6.7 | LH64115K | 11.5 | 3.8 - 5.8 | 2.00 | 10.00 | 4.20 | 280 | 300 | 2,000 |
| LH64135K | 13.5 | 5.8 - 7.8 | 380 | 300 | 2,000 | |||||
| LH64155K | 15.5 | 7.8 - 9.8 | 430 | 300 | 2,000 | |||||
| LH64175K | 17.5 | 9.8 - 11.8 | 500 | 300 | 2,000 | |||||
| LH64195K | 19.5 | 11.8 - 13.8 | 500 | 300 | 2,000 | |||||
| LH64215K | 21.5 | 13.8 - 15.8 | 500 | 300 | 2,000 | |||||
| LH64235K | 23.5 | 15.8 - 17.8 | 500 | 300 | 2,000 | |||||
| LH64255K | 25.5 | 17.8 - 19.8 | 500 | 300 | 2,000 | |||||
| LH64275K | 27.5 | 19.8 - 21.8 | 500 | 300 | 2,000 | |||||
| LH64295K | 29.5 | 21.8 - 23.8 | 500 | 300 | 2,000 |
