Dome Head

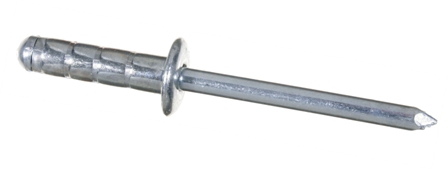

Steel-Fix Rivet with Dome Head
Before Installation

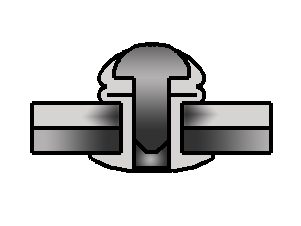

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8'' 3.2mm | 3.3 | SF32090D | 9.0 | 1.0 - 4.0 | 0.85 | 7.20 | 2.10 | 154 | 175 | 10,000 |
| SF32130D | 13.0 | 1.0 - 9.0 | 154 | 175 | 8,000 | |||||
| 5/32'' 4.0mm | 4.1 | SF40110D | 11.0 | 1.4 - 5.0 | 1.20 | 8.10 | 2.73 | 200 | 240 | 6,000 |
| SF40140D | 14.0 | 1.4 - 8.0 | 200 | 240 | 5,000 | |||||
| 3/16'' 4.8mm | 4.9 | SF48090D | 9.0 | 1.0 - 4.0 | 1.45 | 9.80 | 2.90 | 450 | 390 | 5,000 |
| SF48110D | 11.0 | 1.0 - 6.0 | 450 | 390 | 5,000 | |||||
| SF48140D | 14.0 | 1.0 - 9.0 | 450 | 390 | 4,000 | |||||
| SF48170D | 17.0 | 3.0 - 12.0 | 450 | 390 | 4,000 | |||||
| 1/4'' 6.4mm | 6.8 | SF64145P | 14.5 | 1.5 - 7.5 | 3.00 | 13.00 | 4.17 | 700 | 420 | 2,000 |
Blue Pneumatic
Fastening Systems
13025 E. Meyer Rd
Whittier, CA 90605
Call Us Toll Free
Tel: 1.888.go blue 5
Fax: 562.903.1662
Our coatings are RoHS and REACH compliant.
