Dome Head
Steel/Steel Open End Rivet With Dome Head

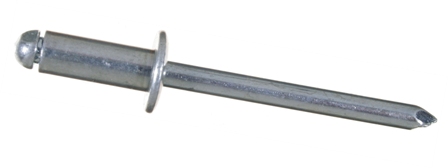

Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8'' 3.2mm | 3.3 | S32060D | 6.0 | 0.5 - 2.5 | 0.90 | 6.30 | 2.01 | 130 | 178 | 10,000 |
| S32080D | 8.0 | 2.5 - 4.5 | 130 | 178 | 10,000 | |||||
| S32100D | 10.0 | 4.5 - 6.5 | 130 | 178 | 10,000 | |||||
| S32120D | 12.0 | 6.5 - 8.5 | 130 | 178 | 10,000 | |||||
| S32140D | 14.0 | 8.5 - 10.5 | 130 | 178 | 8,000 | |||||
| S32160D | 16.0 | 10.5 - 12.5 | 130 | 178 | 7,000 | |||||
| 5/32'' 4.0mm | 4.1 | S40080D | 8.0 | 1.5 - 3.5 | 1.15 | 7.80 | 2.31 | 190 | 280 | 7,000 |
| S40100D | 10.0 | 3.5 - 5.5 | 190 | 280 | 7,000 | |||||
| S40120D | 12.0 | 5.5 - 7.5 | 190 | 280 | 6,000 | |||||
| S40140D | 14.0 | 7.5 - 9.5 | 190 | 280 | 6,000 | |||||
| S40160D | 16.0 | 9.5 - 11.5 | 190 | 280 | 5,000 | |||||
| S40180D | 18.0 | 11.5 - 13.5 | 190 | 280 | 5,000 | |||||
| 3/16'' 4.8mm | 4.9 | S48080D | 8.0 | 1.0 - 3.0 | 1.30 | 9.30 | 2.91 | 290 | 400 | 5,000 |
| S48100D | 10.0 | 3.0 - 5.0 | 290 | 400 | 5,000 | |||||
| S48120D | 12.0 | 5.0 - 7.0 | 290 | 400 | 5,000 | |||||
| S48140D | 14.0 | 7.0 - 9.0 | 290 | 400 | 4,000 | |||||
| S48160D | 16.0 | 9.0 - 11.0 | 290 | 400 | 4,000 | |||||
| S48180D | 18.0 | 11.0 - 13.0 | 290 | 400 | 4,000 | |||||
| S48200D | 20.0 | 13.0 - 15.0 | 290 | 400 | 3,000 | |||||
| S48220D | 22.0 | 15.0 - 17.0 | 290 | 400 | 3,000 |
