Protruding Head

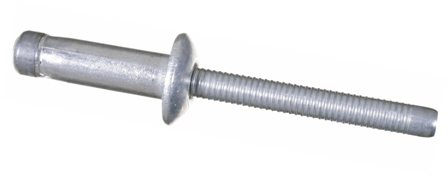

Aluminium/Aluminium Orlock Rivet with Protruding Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/16'' 4.8mm | 5.0 | LH48090P | 9.0 | 1.5 - 3.5 | 2.20 | 9.80 | 3.00 | 180 | 170 | 5,000 |
| LH48115P | 11.5 | 3.5 - 6.0 | 260 | 170 | 4,000 | |||||
| LH48140P | 14.0 | 6.0 - 8.5 | 260 | 170 | 4,000 | |||||
| LH48165P | 16.5 | 8.5 - 11.0 | 260 | 170 | 3,000 | |||||
| LH48190P | 19.0 | 11.0 - 13.5 | 260 | 170 | 3,000 | |||||
| LH48225P | 22.5 | 13.0 - 15.0 | 260 | 170 | 3,000 | |||||
| 1/4'' 6.4mm | 6.7 | LH64105P | 10.5 | 2.8 - 4.8 | 3.00 | 13.00 | 4.20 | 430 | 350 | 2,000 |
| LH64111P | 11.1 | 3.4 - 6.8 | 430 | 350 | 2,000 | |||||
| LH64125P | 12.5 | 4.8 - 6.8 | 460 | 350 | 2,000 | |||||
| LH64145P | 14.5 | 6.8 - 8.8 | 500 | 350 | 2,000 | |||||
| LH64165P | 16.5 | 8.8 - 10.8 | 500 | 350 | 2,000 | |||||
| LH64185P | 18.5 | 10.8 - 12.8 | 500 | 350 | 2,000 | |||||
| LH64205P | 20.5 | 12.8 - 14.8 | 500 | 350 | 2,000 |
