Dome Head

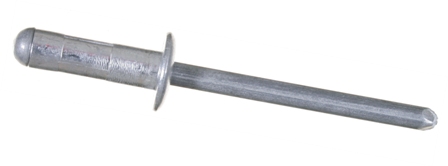

Aluminium/Aluminium U-Fix Rivet with Dome Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8'' 3.2mm | 3.3 | UH32080D | 8.0 | 0.8 - 4.8 | 0.95 | 6.40 | 2.00 | 45 | 70 | 10,000 |
| UH32111D | 11.1 | 4.0 - 7.9 | 45 | 70 | 10,000 | |||||
| 5/32'' 4.0mm | 4.1 | UH40095D | 9.5 | 1.2 - 6.4 | 1.20 | 7.90 | 2.30 | 60 | 80 | 7,000 |
| UH40111D | 11.1 | 3.2 - 7.9 | 60 | 80 | 7,000 | |||||
| 3/16'' 4.8mm | 4.9 | UH48103D | 10.3 | 1.6 - 6.4 | 1.45 | 9.80 | 2.90 | 100 | 150 | 5,000 |
| UH48151D | 15.1 | 4.8 - 11.1 | 100 | 150 | 4,000 | |||||
| UH48169D | 16.9 | 6.4 - 12.7 | 100 | 150 | 4,000 | |||||
| UH48248D | 24.8 | 12.7 - 19.8 | 100 | 150 | 4,000 |
