Extra-Large Head

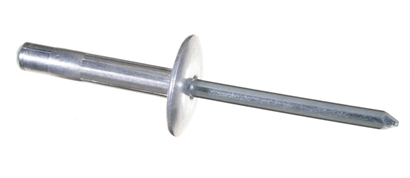

Aluminium/Steel U-Fix Rivet with Extra-Large Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8'' 3.2mm | 3.3 | U32080X | 8.0 | 0.8 - 4.8 | 1.20 | 9.50 | 1.81 | 75 | 104 | 8,000 |
| U32095X | 9.5 | 1.2 - 6.4 | 75 | 104 | 8,000 | |||||
| U32111X | 11.1 | 4.0 - 7.9 | 75 | 104 | 7,000 | |||||
| U32127X | 12.7 | 5.5 - 9.5 | 75 | 104 | 7,000 | |||||
| 5/32'' 4.0mm | 4.1 | U40111X | 11.1 | 3.2 - 7.9 | 1.50 | 12.00 | 2.25 | 116 | 170 | 5,000 |
| U40127X | 12.7 | 4.0 - 9.5 | 116 | 170 | 4,000 | |||||
| U40169X | 16.9 | 6.4 - 12.7 | 116 | 170 | 4,000 | |||||
| 3/16'' 4.8mm | 4.9 | U48103X | 10.3 | 1.6 - 6.4 | 1.75 | 15.85 | 2.80 | 159 | 240 | 3,000 |
| U48151X | 15.1 | 4.8 - 11.1 | 159 | 240 | 2,500 | |||||
| U48169X | 16.9 | 6.4 - 12.7 | 159 | 240 | 2,500 | |||||
| U48248X | 24.8 | 12.7 - 19.8 | 159 | 240 | 2,000 |
