Large Head
Or-Bulb Rivet With Large Head

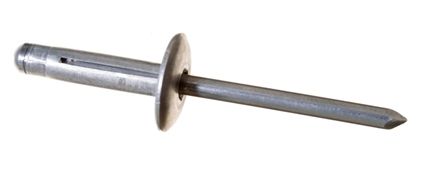

Before Installation

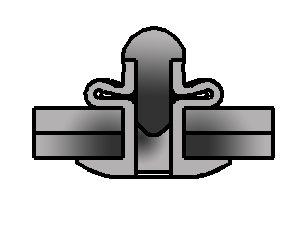

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/16'' 4.8mm | 5.1 | BB48153L | 15.3 | 1.0 - 4.0 | 2.00 | 14.00 | 2.91 | 92 | 122 | 3,000 |
| BB48175L | 17.5 | 1.0 - 6.3 | 92 | 122 | 2,500 | |||||
| BB48205L | 20.5 | 1.0 - 9.0 | 92 | 122 | 2,500 | |||||
| BB48240L | 24.0 | 4.0 - 12.0 | 92 | 122 | 1,500 |
Blue Pneumatic
Fastening Systems
13025 E. Meyer Rd
Whittier, CA 90605
Call Us Toll Free
Tel: 1.888.go blue 5
Fax: 562.903.1662
Our coatings are RoHS and REACH compliant.
