Dome Head
Or-Bulb Rivet with Dome Head

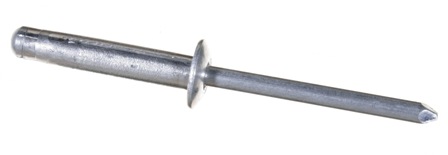

Before Installation

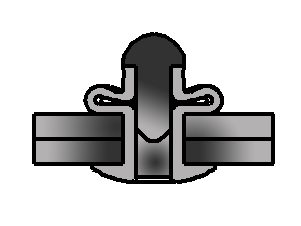

After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 5/32'' 4.0mm | 4.3 | BB40136D | 13.6 | 1.0 - 3.0 | 1.40 | 8.00 | 2.30 | 61 | 102 | 6,000 |
| BB40188D | 18.8 | 1.0 - 7.0 | 61 | 102 | 4,000 | |||||
| BB40248D | 24.8 | 4.0 - 10.0 | 61 | 102 | 4,000 | |||||
| 3/16'' 4.8mm | 5.1 | BB48153D | 15.3 | 1.0 - 4.0 | 1.80 | 9.80 | 2.91 | 92 | 122 | 3,000 |
| BB48175D | 17.5 | 1.0 - 6.3 | 92 | 122 | 3,000 | |||||
| BB48205D | 20.5 | 1.0 - 9.0 | 92 | 122 | 2,500 | |||||
| BB48240D | 24.0 | 4.0 - 12.0 | 92 | 122 | 2,500 | |||||
| BB48280D | 28.0 | 8.0 - 16.0 | 92 | 122 | 2,500 | |||||
| BB48310D | 31.0 | 11.0 - 19.0 | 92 | 122 | 2,000 |
Blue Pneumatic
Fastening Systems
13025 E. Meyer Rd
Whittier, CA 90605
Call Us Toll Free
Tel: 1.888.go blue 5
Fax: 562.903.1662
Our coatings are RoHS and REACH compliant.
