Countersunk Head

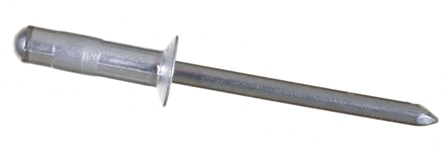

Aluminium/Stainless Steel U-Fix Rivet with Countersunk Head
Before Installation
After Installation
Info:
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8'' 3.2mm | 3.3 | UN32095K | 9.7 | 2.4 - 6.4 | 0.85 | 5.35 | 1.81 | 70 | 93 | 10,000 |
| UN32111K | 11.1 | 4.0 - 7.9 | 75 | 93 | 10,000 | |||||
| 5/32'' 4.0mm | 4.1 | UN40097K | 9.7 | 1.2 - 6.4 | 0.90 | 6.30 | 2.25 | 102 | 136 | 7,000 |
| UN40113K | 11.3 | 2.8 - 7.9 | 102 | 136 | 8,000 | |||||
| UN40127K | 12.7 | 4.3 - 9.5 | 102 | 136 | 6,000 | |||||
| 3/16'' 4.8mm | 4.9 | UN48127K | 12.1 | 3.2 - 7.9 | 1.45 | 8.70 | 2.80 | 159 | 240 | 5,000 |
| UN48169K | 16.9 | 6.4 - 12.7 | 159 | 240 | 4,000 |
