Panel Fix Dome Head

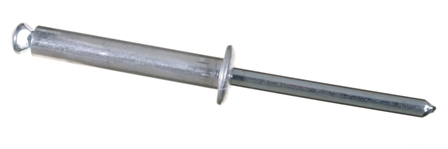

T.P.R / O.R.P Rivet With Panel Fix Dome Head
Before Installation
After Installation
Info:
|
|
|---|
Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4'' 6.4mm | 6.9 | R63025D | 25.0 | 9.0 - 10.0 | 1.80 | 12.00 | 3.60 | 250 | 320 | 1,000 |
| R63030D | 30.0 | 9.0 - 15.0 | 250 | 320 | 1,000 | |||||
| R63038D | 38.0 | 9.0 - 23.0 | 250 | 320 | 1,000 | |||||
| R63051D | 51.0 | 15.0 - 35.0 | 250 | 320 | 1,000 | |||||
| R63076D | 76.0 | 35.0 - 60.0 | 250 | 320 | 500 | |||||
| R63102D | 102.0 | 60.0 - 85.0 | 250 | 320 | 500 | |||||
| T63038D | 38.0 | 18.0 - 23.0 | 250 | 320 | 1,000 | |||||
| T63051D | 50.0 | 18.0 - 32.0 | 250 | 320 | 1,000 | |||||
| T63064D | 64.0 | 29.0 - 46.0 | 250 | 320 | 1,000 | |||||
| T63076D | 76.0 | 41.0 - 58.0 | 250 | 320 | 500 | |||||
| T63088D | 88.0 | 53.0 - 70.0 | 250 | 320 | 500 | |||||
| T63102D | 102.0 | 66.0 - 83.0 | 250 | 320 | 500 | |||||
| T63127D | 127.0 | 91.0 - 108.0 | 250 | 320 | 500 | |||||
| T63152D | 152.0 | 116.0 - 133.0 | 250 | 320 | 500 | |||||
| T63178D | 178.0 | 142.0 - 159.0 | 250 | 320 | 250 | |||||
| T63203D | 203.0 | 167.0 - 184.0 | 250 | 320 | 250 | |||||
| T63228D | 228.0 | 193.0 - 213.0 | 250 | 320 | 250 | |||||
| T63253D | 253.0 | 218.0 - 235.0 | 250 | 320 | 250 |
