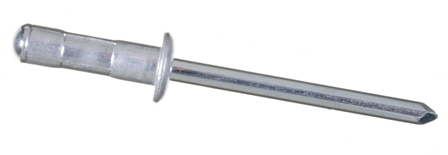

Aluminium/Steel U-Fix Rivet with Snap Head

Before Installation
Before Installation

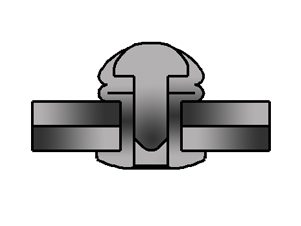

After Installation
After Installation

Info:

Body Material Aluminium Alloy (2.0/2.5 Mg)
Body Finish Bright finish surface
Mandrel Material Carbon Steel   SAE 1006-1022
Mandrel Finish Zinc Plated Cr VI free

Dimensions - Nominal (Millimeters)
Forces - Nominal (Kg)

Nom. Size Drill Dia Body Length Grip Min Grip Max Head Height Head Dia ManDrel Dia Shear Strenght Tensile Strenght Units In Box
1/8'' 3.2mm 3.3 U32080S 8.0 0.8    -    4.8 1.00 5.20 1.81 75 104 10,000
U32095S 9.5 1.2    -    6.4 75 104 10,000
U32111S 11.1 4.0    -    7.9 75 104 10,000
U32127S 12.7 5.5    -    9.5 75 104 10,000
5/32'' 4.0mm 4.1 U40095S 9.5 1.2    -    6.4 1.35 6.20 2.25 116 170 8,000
U40111S 11.1 3.2    -    7.9 116 170 6,000
U40127S 12.7 4.0    -    9.5 116 170 6,000
U40151S 15.1 6.4    -    11.1 116 170 5,000
U40169S 16.9 6.4    -    12.7 116 170 5,000
3/16'' 4.8mm 4.9 U48103S 10.3 1.6    -    6.4 1.65 8.60 2.80 159 240 5,000
U48151S 15.1 4.8    -    11.1 159 240 4,000
U48169S 16.9 6.4    -    12.7 159 240 4,000
U48248S 24.8 12.7    -    19.8 159 240 4,000
