Lockbolt All-in-One BP-82E

Lockbolt All-in-One BP-82E

The BP-82E Lockbolt All-In-One installs Huck and Avdel Lockbolts. This tool uses 5500 lbs. of pulling force to install Magnagrip and Maxlok pin and collar fasteners. The BP-82E sets 3/16 and 1/4 lockbolts, which includes Huck C6L and Magnagrip and Avdel Cherry Texron Avdelok and Maxlok. This Huck tool converts to pull 3/16 and 1/4 blind rivets. The generous 7/8 stroke sets up to 1/4 structural rivets, many in just one stroke.

This Huckbolt tool is ideal for many truck and trailer repair applications. It is also designed to install the C98LT stainless steel polished Huck bolts used on the Peterbilt Truck Cab grills. These tools are often referred to as Huck tools. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 85-110 psi. Weight 6.5 lbs.

This tools installs the same Huck and Avdel style pin and collar fasteners as our BP-82E. This Huckbolt tool features a super light weight, ergonomic, composite body. The ergonomic handle and light weight reduces user fatigue in production applications. The SL-68c Lockbolt tool also converts to install blind rivets up to 1/4" in all materials, including structural rivets. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 90-110 psi.

Weight 5.3 lbs.

Available Nose Assemblies:
Blind Rivet Nose Assembly
 T11790
3/16 C6L (and C98LT polished stainless) Nose Assembly
 T18190
1/4 C6L Nose Assembly
 T18290
3/16 Magnagrip Nose Assembly
 T18190MA
1/4 Magnagrip Nose Assembly
 T18290MA

Available Nose Assemlies:
3/16 Magnagrip Nose Assembly (6" long)
 T18190MAE6
1/4 Magnagrip Nose Assembly (6" long)
 T18290MAE6
3/16 C6L (and C98LT polished stainless)
Nose Assembly (6" long)
 T18190E6
1/4 C6L Nose Assembly (6" long)
 T18290E6

*6” Nose Assembly available by special order.

Video View a video demo for this tool
PDF Download a breakdown of this tool in PDF format

Trucking Industry


Lockbolt SuperLight All-in-One SL-68c
Lockbolt SuperLight All-in-One SL-68c

This tools installs the same Huck and Avdel style pin and collar fasteners as our BP-82E. This Huckbolt tool features a super light weight, ergonomic, composite body. The ergonomic handle and light weight reduces user fatigue in production applications. The SL-68c Lockbolt tool also converts to install blind rivets up to 1/4” in all materials, including structural rivets. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 90-110 psi.
Weight 5.3 lbs.

Video View a video demo for this tool
PDF Download a breakdown of this tool in PDF format
| back to top

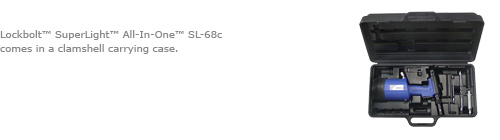

Lockbolt SuperLight All-in-One SL-68c clamshell carting case
