Big Blue BP-50
Big Blue BP-50

This one is loaded with pulling force at 3800lbs. This is a heavy duty air/hydraulic riveter. Big Blue sets rivets from 1/8 through 1/4 in all materials and is ideal for Monobolt/Magna-lok and other structural rivets. Its 7/8 stroke allows this rivet tool to pull most structural rivets in one stroke. More power and a forged aluminum cylinder means long life. Big Blue is built to last and last. Great for high production applications. Rivet tool comes with nose pieces including 1/8, 5/32, 3/16 and 1/4. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 85-100 psi. Weight 5 lbs.

*Tool can be adjusted to pull 9/32 rivets.

Video View a video demo for this tool
PDF Download a breakdown of this tool in PDF format
back to top

Part #BP-50V

Tool also available in vaccum-powered mandrel collection system. To order tool complete with system use Part #BP-50V.

PDF Download a breakdown of this tool in PDF format

Big Blue Junior BP-54
Big Blue Junior BP-54

This pop rivets gun is like our heavy duty riveter, Big Blue, but without the steroids. Big Blue Junior has the power of the large “heavy duty” riveters in the body of a small one. This tool simply has more pulling force than other tools in its weight class. This is our “full range riveter”. This pop rivets gun tool sets 3/32, 1/8, 5/32 and 3/16 rivets in all materials. Big blue Jr. is ideal for multi-grip rivets and pulls 3/16 Monobolt/Magna-lok structural rivets. This tool provides an economical light-weight solution to placing a wide range of rivets. Nose pieces and service wrenches are included. Recommended operating air pressure is 85-100 psi. Weight 4 lbs.

Video View a video demo for this tool
PDF Download a breakdown of this tool in PDF format
back to top

Part #BP-53V

Tool also available in vaccum-powered mandrel collection system.
To order tool complete with system use Part #BP-53V.

PDF Download a breakdown of this tool in PDF format

Power Micro BP-48V
Power Micro BP-48V

Our Power Micro blind rivet gun is the smallest and most powerful riveter on the market. This rivet tool allows the operator to easily install blind rivets in spaces were access and space is limited. Our hydraulic Power Micro riveter installs 3/32, 1/8 and 5/32 blind rivets in all materials. More Power means this rivet tool also has the most impressive size to power ratio available anywhere. This rivet tool weighs in at 2.4 lbs and has 1760 lbs. of pulling force. The rivet gun comes with a vaccum powered mandrel collection system. This systems collects the spent rivet mandrels, which keeps them from damaging the product and polluting the work area. Also included are wrenches for service and oil applicator. Recommended operation pressure 85-100 psi. Weight 2.4 lbs.

Video View a video demo for this tool
PDF Download a breakdown of this tool in PDF format
back to top

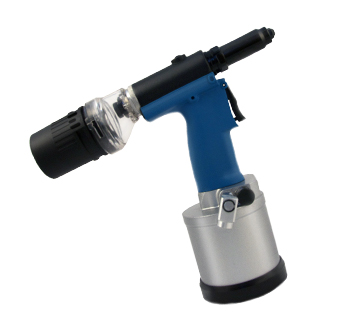

BP-3V
BP-3V

Meet the new generation of riveting tools. The BP-3V riveter is a combination of all the most useful features. The BP-3V riveting tool has the best weight to power ratio in the industry, boasting 2100lbs of pulling force. It can set 1/8,5/32 and 3/16 rivets in all Alloys, including Monobolt and Magna-lok structural rivets, most in one stroke.The BP-3V Rivet Gun is super light weight and small, allowing the rivet gun to fit in the tightest of spaces. The rivet tool is expertly designed too. Look no further for the best in ergonomics, balance and comfort. This tool has a convenient, thumb-operated on/off vaccum control switch to control compressor air consumption while it holds the rivet in place in the nose tip. Rivet tool comes complete with nose tips for 1/8, 5/32 and 3/16,. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 80-95psi. Weight 3.2 lbs.

PDF Download a breakdown of this tool in PDF format back to top

BP-4V
BP-4V

Meet the new generation of riveting tools. The BP-4V riveter is a combination of all the most useful features. The BP-4V riveting tool has the best weight to power ratio in the industry, boasting 3500lbs of pulling force. It can set 1/8,5/32, 3/16 and 1/4 rivets in all Alloys, including Monobolt and Magna-lok structural rivets, most in one stroke.The BP-4V Rivet Gun is super light weight, allowing the rivet gun to be operated continually with great comfort. The rivet tool is expertly designed too. Look no further for the best in ergonomics, balance and comfort. This tool has a convenient, thumb-operated on/off vaccum control switch to control compressor air consumption while it holds the rivet in place in the nose tip. Rivet tool comes complete with nose tips for 1/8, 5/32, 3/16 and 1/4. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 80-95psi. Weight 3.6 lbs.

PDF Download a breakdown of this tool in PDF format back to top

SuperLight SL-2
SuperLight SL-2

In Blue Pneumatics continuing pursuit of "delivering value" the way you want it, we have developed our super light power riveting tool series. These riveting tools offer high end, robust construction and durability. The ergonomic design reduces operator fatigue. SuperLight™ series tools set the standard when it comes to performance and overall value. SuperLight™ tools offer a riveter to optimally fit the power and stroke requirements for each riveting application. These riveters are equipped with a super efficient mandrel collection system to collect the spent mandrels. SuperLight™ tools boast a super durable and light composite body and rugged rubber base. The SL-2 is our “full range” composite light weight rivet tool. This riveter uses 3500 lbs. of pulling force along with a ¾” stroke and sets up to 1/4” rivets in all materials. The SL-2 also has thumb release air shut-off to conserve compressed air. Comes complete with 1/8, 5/32, 3/16 and 1/4 nose tips. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 90 psi. Weight 3.8 lbs.

Video View a video demo for this tool
PDF Download a breakdown of this tool in PDF format
back to top

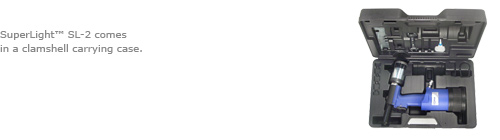

SuperLight SL-2 carrying case

SuperLight SL-3
SuperLight SL-3

The SL-3 offers the same features as the SL-2. This rivet tool is designed with a one inch stroke and sets multi-grip and structural rivets in a single stroke. This riveter has 3800 lbs. of pulling force. Comes complete with 1/8 thru 1/4 nose tips. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 80-100 psi. Weight 5 lbs.

Video View a video demo for this tool
PDF Download a breakdown of this tool in PDF format
back to top

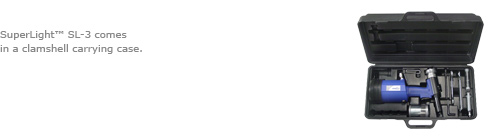

SuperLight SL-3 carrying case

Professional Hand Riveter BP-721
Professional Hand Riveter BP-721

Hand Riveter

Aluminum body with chrome-vanadium handle. SCM4 jaws and carbon steel jaw case and pin.

Comes with nose tips for 1/8, 5/32 and 3/16 blind rivets.
